Creating Jobs

Creating and administering jobs using the UI, the CLI, or the API

You can create and administer jobs for the DC/OS® cluster in any of the following ways:

  • interactively with the DC/OS UI
  • interactively or programmatically with the DC/OS CLI
  • directly through calls to the DC/OS application programming interface (API) for job-related operations

The DC/OS UI only provides access to a subset of the job-related functionality provided through the dcos job CLI and Jobs API. For more advanced job configurations and activity, use the CLI dcos job commands or the Jobs API.

The DC/OS application programming interface (API) provides underlying functionality that you can access through the DC/OS UI and CLI. In most cases, you would only use the API directly if you are integrating the functionality with a custom program or automation script.

Managing jobs with the DC/OS UI

You can manage the most common job-related activity interactively through the DC/OS UI. For example, you can add, modify, run, and remove jobs directly from the Jobs tab in the UI.

Jobs

Figure 1 - Jobs tab and jobs list

Split screen

Note that in all the Jobs UI configuration screens, you can choose to view the UI alone, or split the screen between the UI and a JSON Editor window. In the following discussion of the Jobs configuration options, we will show you the split screen so that you can see how they work together, but you may always choose to use the UI by itself. To invoke the JSON Editor, click on the JSON Editor toggle switch next to the Submit button.

Edits made to either interface are immediately reflected in the other. For example, if you enter a value in any field in the left hand UI, it is added to the JSON file on the right hand window.

To dismiss the JSON Editor screen, click the toggle again.

Split Screen

Figure 2 - Split screen

Add a job

There are two ways to create a job in the DC/OS UI.

  • If you have no jobs configured, the Jobs screen will contain a notice that you have no active jobs, and will display a Create a Job button.

No active jobs

Figure 3 - Create a Job button

  • Regardless of whether you have active jobs or not, you can always click on the + sign in the upper right corner to create a new job.

Plus sign

Figure 4 - Click on the plus sign

A configuration screen for a new job will appear. Note that this screen is the same as the screen for editing jobs.

Job configuration screen

Figure 5 - Job configuration screen

Configuring a job

You will see eight tabs on the left hand side of the screen. These help you name, configure and manage your job:

Name Description
General Sets the most basic job settings, such as the job identifier, CPU, memory and disk requirements.
Container Runtime Specifies whether the job runs using the Universal Container Runtime or the Docker® Engine.
Schedule Sets up a schedule for your job. You can use the cron format.
Environment Specifies environment variables to be attached to each instance of your job.
Volumes Configures a stateful job by setting up a persistent volume.
Placement Specifies the placement of agent nodes in regions and zones for high availability, or to expand capacity to new regions.
Run Configuration Advanced settings for the job.
Secrets Sets up a Secret Store to secure important values like private keys, API tokens, and so forth.

Detailed information about the parameters and values for each of the configuration screens can be found in the Jobs documentation.

General

Select General to edit the most basic job settings, such as the job identifier, CPU, memory, and disk requirements.

Jobs

Figure 6 - General configuration tab

The parameters for this tab and the values allowed are found in the Jobs documentation of the UI.

Container Runtime

Select Container Runtime to specify whether the container for the new job runs using the Universal Container Runtime or the Docker engine. We support the Universal Container Runtime (UCR) and the Docker Engine.

UCR

Universal Container Runtime uses the native Mesos engine and supports GPU resources. This is the recommended selection.

Jobs

Figure 7 - Jobs > Container Runtime tab

Docker Engine

The Docker Engine is Docker’s container runtime. It requires an image and does not support GPU resources.

Jobs

Figure 8 - Jobs > Container Runtime > Docker Engine tab

The parameters for this tab and the values allowed are found in the Jobs documentation of the UI.

Schedule

You can set up jobs with a scheduler using the cron format. Select Schedule to specify a schedule for when the job runs.

Schedule

Figure 9 - Jobs > Schedule tab

The parameters for this tab and the values allowed are found in the Jobs documentation of the UI.

After you define the schedule, you can activate or deactivate it by selecting or deselecting the Enable Schedule option. You can also modify or remove the schedule when needed after you have submitted the new job definition.

Environment

Select Environment to configure any environment values to be attached to each instance of your job that is launched.

Environment

Figure 10 - Jobs > Environment tab

The parameters for this tab and the values allowed are found in the Jobs documentation of the UI.

Volumes

Select the Volumes tab to create a stateful job by configuring a persistent volume. Persistent volumes enable instances to be restarted without data loss.

Volumes

Figure 11 - Jobs > Volumes tab

The parameters for this tab and the values allowed are found in the Jobs documentation of the UI.

Placement

You can configure the placement of agent nodes in regions and zones for high availability, or to expand capacity to new regions when necessary.

Placement

Figure 12 - Jobs > Placement tab

The parameters for this tab and the values allowed are found in the Jobs documentation of the UI.

Run Configuration

Select Run Configuration to specify advanced settings for the new job.

Run Config

Figure 13 - Jobs > Run Configuration tab

The parameters for this tab and the values allowed are found in the Jobs documentation of the UI.

Secrets

Select the DC/OS Secret Store to secure important values like private keys, API tokens, and database passwords.

Secrets

Figure 14 - Secrets tab

The parameters for this tab and the values allowed are found in the Jobs documentation of the UI.

Network

Note: The following procedure requires DC/OS release version 2.0.4 or higher.

Networking information can be specified using the JSON tab. See the following example for how networks are defined for jobs:

    ```json
    {
      "id": "networking-job",
      "description": "A job that outputs network info and sleeps",
      "run": {
        "cmd": "ip a; sleep 60",
        "docker": {
          "image": "alpine"
        },
        "networks": [{"mode": "container", "name": "dcos"}],
        "cpus": 0.01,
        "mem": 32,
        "disk": 0
      }
    }
    ```

The networks field functions identical to Marathon's, and supports the following parameters.

* **mode** - The network mode. Valid values are `container`, `container/bridge` and `host`. The default value is `host`. There is little value in using `container/bridge` for jobs, but it is still supported.
* **name** - The name of the container network to join. It is an error to specify this field with mode `host` or `container/bridge`.
* **labels** - Key-value string arguments to pass to the networking plugin. It is an error to specify this with mode `host`.

Jobs do not support port mapping.

## Submit

1. Click **Submit** to create the job.

1. Verify that you have added the new job by clicking **Jobs**.

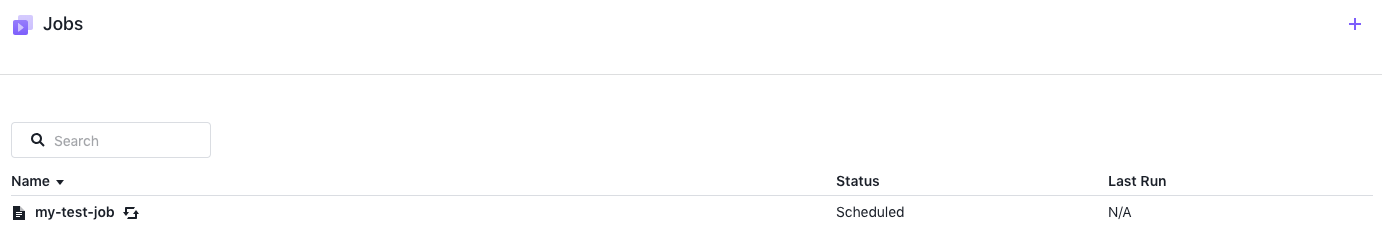

    ![Jobs List](/mesosphere/dcos/2.0/img/job-list-scheduled.png)

    Figure 15. Jobs list

## Add a job to a job group
You can add a job to a an existing job group or create a new job group when you create the job. Use periods in your job ID to nest the job in a group. For example, if you add a job using the job ID `marketing.myjob`, the new `myjob` is created in the `marketing` job group. In DC/OS Enterprise, you can use job groups to implement fine-grained user access.

For more information about controlling access to jobs through job groups, see [Granting access to jobs](/mesosphere/dcos/2.0/deploying-jobs/job-groups/).

## View, modify, or remove a specific job
You can view and modify job-related information, including details about the run history and configuration settings interactively through the DC/OS UI. From the **Jobs** tab, click the name of your job. You can then use the menu on the upper right to edit, run, disable, or delete a selected job.

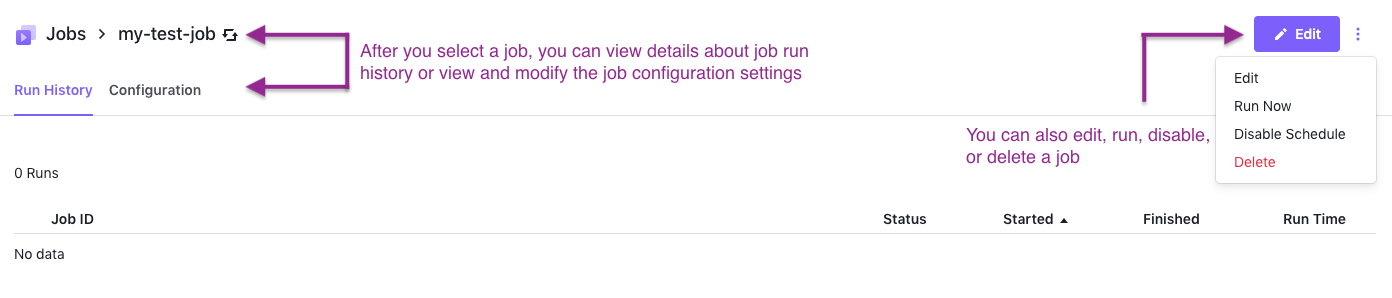

![Viewing and modifying job details](/mesosphere/dcos/2.0/img/job-menu-options.png)

Figure 16. Viewing and modifying job details

While the job is running, you can click the job instance to drill down to **Details**, **Files**, and **Logs** data.

You can see that the **Edit Job** screen contains the same configuration tabs as the **New Job** screen:

![Jobs](/mesosphere/dcos/2.0/img/GUI-Jobs-General.png)

Figure 17 - General configuration tab in **Edit Job** screen

<a name="cli"></a>

# Managing jobs with the DC/OS CLI
You can create and manage jobs from the DC/OS CLI using `dcos job` commands. To see a full list of available commands with usage information, run `dcos job --help` or consult the [CLI documentation](/mesosphere/dcos/2.0/cli/command-reference/dcos-job/).

<a name="cli-add-job"></a>

## Create a JSON file for a new job
1. Open a new file in a text editor to create a job file in JSON format.

1. In the new file, specify the basic parameters required to define the job, including the following:
    - the job `id` you use to manage the job
    - the specific command to run
    - the CPU, memory, and disk requirements
    - the job schedule

    For example, the JSON file for a new job might look similar to this:

    ```json
    {
        "id": "myjob",
        "description": "A job that sleeps regularly",
        "run": {
            "cmd": "sleep 20000",
            "cpus": 0.01,
            "mem": 32,
            "disk": 0
        },
        "schedules": [
            {
                "id": "sleep-schedule",
                "enabled": true,
                "cron": "20 0 * * *",
                "concurrencyPolicy": "ALLOW"
            }
        ]
    }
    ```

1. Save the JSON file for the new job using an easily-identifiable file name. For example, you might save the job information as `mysleepjob.json`.

1. Add the job by running a command similar to the following:

    ```bash
    dcos job add <myjob>.json
    ```

    For example:

    ```bash
    dcos job add mysleepjob.json
    ```
1. Verify that you have added the new job by running a command similar to the following:

    ```bash
    dcos job list
    ```

    The command displays the list of jobs similar to the following:

    ```bash
        ID       STATUS    LAST RUN
    mysleepjob  Scheduled  N/A
    mypingjob   Running    N/A
    ```

## Concurrency policy for scheduled jobs
If you use a schedule to start a job, you can define a concurrency policy for the job. A concurrency policy determines whether a new job run instance is triggered if there's already a job instance running.

For example, assume you have a job scheduled to start every day at 3:00AM, and you have set the concurrency policy for the job set to FORBID. If there is an instance of that job already running at 3:00AM - either because a previously-triggered job run is still active or has been triggered manually outside of the schedule - the scheduled start time will not trigger a new job to run. If there are no jobs running at the next scheduled start time, a new job instance starts and runs as scheduled.

If you want to allow scheduled jobs to be triggered while  other instances of the same job are running, you can set the `concurrencyPolicy` to ALLOW.

Note: A `concurrencyPolicy` set to FORBID does *not* prevent you from starting a new job instance manually - for example through the API - even if one is already running. It only prevents a schedule to start a new job instance.

## MaxLaunchDelay
The `maxLaunchDelay` is a deprecated configuration option and is no longer used.

## Restart policy
Per default, metronome only tries to start a job instance once - the default restart policy is NEVER. The alternative is to set the restart policy to ON_FAILURE, which configures metronome to restart the task until it completes successfully or the `activeDeadlineSeconds` is reached.

If no `activeDeadlineSeconds` is defined, metronome tries restarting the task indefinitely, which may lead to issues if the task will never complete successfully - it is advised to always set an `activeDeadlineSeconds`.

```json
{
  ...
  "run" : {
    "cpus" : 0.01,
    "mem" : 32,
    "disk" : 0,
    "cmd" : "sleep 60",
    "restart" : {
      "policy" : "ON_FAILURE",
      "activeDeadlineSeconds" : 30
    }
  },
  ...
}

TaskKillGracePeriod

The taskKillGracePeriodSeconds can be used to define the time between the SIGTERM and SIGKILL that is send to a task on stop. See Marathons documentation on taskKillGracePeriodSeconds for more information

{
  ...
  "run" : {
    "cpus" : 0.01,
    "mem" : 32,
    "disk" : 0,
    "cmd" : "sleep 60",
    "taskKillGracePeriodSeconds" : 30
  },
  ...
}

Create a schedule-only JSON file

If you specify a schedule for a job in the JSON file for that job, you can assign only one schedule under which the job runs.

If you want to use the same schedule for more than one job, however, you can create a separate JSON file specifically for the schedule. You can then use the dcos job schedule add <job-id> <schedule-file> command to associate a job with the schedule.

  1. Open a file in a text editor to create a new job file in JSON format, if necessary.

    You must use the job id you define for the job to associate a schedule JSON file with the job. To prevent schedule conflicts or unexpected job runs, you should not define schedule parameters for a job if you want to use the schedule-only JSON file to control when a job runs.

  2. Open a new file in a text editor to create the schedule you want to use in JSON format.

    For example, the JSON file for a new schedule might look similar to this:

    {
        "concurrencyPolicy": "ALLOW",
        "cron": "20 0 * * *",
        "enabled": true,
        "id": "nightly",
        "nextRunAt": "2016-07-26T00:20:00.000+0000",
        "startingDeadlineSeconds": 900,
        "timezone": "UTC"
    }

  3. Save the JSON file for the new schedule using an easily-identifiable file name. For example, you might save the schedule information as my-cron-def.json.

  4. Associate the job with the schedule by running a command similar to the following:

    dcos job schedule add <job-id> <schedule-file>


    For example:

    dcos job schedule add mytestjob my-cron-def.json


    If you attempt to add a schedule definition to a job that already has a schedule defined, the command displays an error similar to the following:

    Error: 409 - requirement failed: A schedule with id nightly already exists

  5. Verify that you have added the new job schedule by running a command similar to the following:

    dcos job schedule show mytestjob


    This command displays schedule information for the specified job similar to the following:

    ID        CRON     ENABLED            NEXT RUN            CONCURRENCY POLICY
    nightly  20 0 * * *  True     2019-04-11T00:20:00.000+0000  ALLOW


Start a job from the command line

You can trigger a job to run:

  • manually on-demand
  • automatically based on a schedule you have defined
  • programmatically through automation with or without a schedule

You can use any of these approaches to start a job instance that is referred to as a job run. For example, you can use the DC/OS CLI to start jobs regardless of whether you have defined a schedule or not. Starting a job manually from the command-line is similar to starting a job by clicking Run now using the DC/OS UI.

To start a job run on-demand outside of any scheduled job activity, run a command similar to the following:

dcos job run <job-id>

For example, if the job id is mytestjob, run:

dcos job run mytestjob

Starting a job manually from the command-line or through the DC/OS UI triggers a new job run each time the command is executed. Jobs that are triggered manually on-demand ignore concurrency policy settings.

If a schedule is used to start a job, however, the job’s concurrency policy determines whether a new job run instance is triggered. Being able to control whether jobs run concurrently is one of the main differences between triggering a job to run manually or using a schedule.

Remove a job from the command-line

You can remove a job using the command-line program dcos job remove <job-id> as long as the job does not have any active job instances running. If a job has any currently active running instances, you must stop all of the currently-active jobs. After you stop all running job instances, you can remove the job using the dcos job remove <job-id> command.

To remove a job:

  1. Check the status of active jobs by running a command similar to the following:

    dcos job list

  2. Stop all running job instances for the job you want to delete and remove the job by running the following command:

    dcos job remove <job-id> --stop-current-job-runs

  3. Verify that you have removed the specified job by running the following command:

    dcos job list


Modify a job from the command line

To modify your job, update your JSON job file, then run the command:

dcos job update <job-file>.json

Modify a job’s schedule

You can update the schedule of your job in two ways, depending if your job has a schedule specified in the <job-file>.json or if your job’s schedule is kept in a separate file.

Modify a job with a schedule

Modify the schedules parameter of your <job-file>.json. Then run the command:

dcos job update <job-file>.json

Modify a job with a separate schedule file

Modify <schedule-file>.json. Then, run one of the following commands:

dcos job schedule add <job-id> <schedule-file>.json
dcos job schedule remove <job-id> <schedule-id>
dcos job schedule update <job-id> <schedule-file>.json

View job details

List all jobs:

dcos job list

List all previous runs of your job:

dcos job history <job-id>

To view details about your job, run the command:

dcos job show <job-id>

To view details about your job’s schedule, run the command:

dcos job schedule show <job-id>

View job logs

To view the log for your job, run the command:

dcos task log --completed <job-id>

To get the log for only a specific job run, use a job run ID from dcos job history <job-id>

dcos task log --completed <job-run-id>

Managing jobs with the DC/OS API

You can create and manage jobs through calls to the Jobs API endpoints. This section highlights the most common tasks you perform through job-related API calls. For more complete information about the Jobs API, see the Jobs API reference information.

Preparing to use API cals

The code examples in this section illustrate how to include Jobs API calls to perform job-related tasks with the client URL (cURL) program. For detailed information about using curl command, see the curl man page.

In addition, one important difference between using the DC/OS CLI or UI and the API is how you configure the job schedule. The DC/OS CLI and UI support a combined JSON format that allows you to specify a schedule in the job descriptor. To schedule a job using the Jobs API, you must use two separate calls:

  • Use one call to add an unscheduled job.
  • Use a second call to associate a specific schedule file (schedule-file.json) with the job.

Add a job using an API call

The following command adds a job called myjob.json.

curl -X POST -H "Content-Type: application/json" -H "Authorization: token=$(dcos config show core.dcos_acs_token)" $(dcos config show core.dcos_url)/service/metronome/v1/jobs -d@/Users/<your-username>/<myjob>.json

Remove a job using an API call

The following command removes a job regardless of whether the job is running:

curl -X DELETE -H "Authorization: token=$(dcos config show core.dcos_acs_token)" $(dcos config show core.dcos_url)/service/metronome/v1/jobs/<myjob>?stopCurrentJobRuns=true

To remove a job only if it is not running, set stopCurrentJobRuns to False.

Modify or view a job using an API call

The following command shows all jobs:

curl -H "Authorization: token=$(dcos config show core.dcos_acs_token)" $(dcos config show core.dcos_url)/service/metronome/v1/jobs

The following command lists job runs:

curl -H "Authorization: token=$(dcos config show core.dcos_acs_token)" "$(dcos config show core.dcos_url)/service/metronome/v1/jobs/<myjob>/runs/"

Stop a run with the following command:

curl -X POST -H "Authorization: token=$(dcos config show core.dcos_acs_token)" "$(dcos config show core.dcos_url)/service/metronome/v1/jobs/<myjob>/runs/20160725212507ghwfZ/actions/stop"

Add a schedule to a job

The following command adds a schedule to a job:

curl -X POST -H "Content-Type: application/json" -H "Authorization: token=$(dcos config show core.dcos_acs_token)" $(dcos config show core.dcos_url)/service/metronome/v1/jobs/<job-id>/schedules -d@<schedule-file>.json

Start a job using an API call

You can use the DC/OS API to start jobs programmatically. Similar to starting a job using the UI or CLI, you must specify the job identifer in the call.

To trigger a job run to start you can use a REST API call similar to the following:

curl -X POST -H "Authorization: token=$(dcos config show core.dcos_acs_token)" $(dcos config show core.dcos_url)/service/metronome/v1/jobs/{jobId}/runs
