Connect and configure your LDAP directory to Konvoy and Kommander

Connect and configure your LDAP directory to Konvoy using Kommander

An identity provider determines and verifies an end user trying to gain access into Konvoy. This procedure shows how to:

Connect your LDAP directory using Kommander
Configure your LDAP user search query using Kommander
Configure your LDAP group search query using Kommander
Verify your LDAP directory functionality

Before you begin

You need certain software configurations and settings before you start this procedure. This procedure requires the following items and configurations:

Konvoy version 1.4.2 and above installed and running.
Kommander version 1.0 and above installed and running.
An Understanding of your LDAP directory structure, groups and users:
- Host Field
- Bind DN
- Bind Password
- Root CA (Optional)
- Insecure Port Connection Information (Needed for: Insecure No SSL Checkbox, Insecure Skip TLS Verify, and Start TLS)

Connect your External LDAP directory

In this procedure, you will use Kommander to connect your LDAP directory server as an identity provider.

Go to Administration > Identity Providers.
Select + Add Identity Provider.
Select LDAP.
Enter the following connection information to connect your LDAP directory server:

Name - This is the arbitrary name that displays when users login with LDAP. Ensure this is a user friendly name that makes sense and is understandable to users accessing the cluster. Some examples might be:
- D2iQ Active Directory
- Company X Central Login Method
- Open LDAP Directory
Host Field - This is the LDAP server running your LDAP directory, like Active Directory, for example. This server must be addressable/reachable from the Kubernetes Worker nodes. (That is, you can telnet to the proper LDAP port.) The port LDAP listens on, can also be specified here. The format of the host field is as follows:

<ldap hostname>:<ldap port>

Some examples are:
- 192.168.86.55:389
- dc.company.com:389
- 172.43.56.12:636
- domain.foo.bar:636

NOTE: To specify a secure LDAP connection, specify port 636. 636 is the standard secure LDAP port. To specify an insecure LDAP connection, specify port 389. 389 is the standard insecure LDAP port.

Bind DN Field - This is the service account or user account that will connect to the LDAP server. It needs read-only access to the directory tree where it queries users and groups of the server. The format of the Bind DN user is in the standard LDAP data interchange format for the account’s distinguished name. This field is not required if the LDAP server provides access for anonymous authentication. Some examples are:

-   CN=svc_ad,OU=Service_Accounts,OU=VU,DC=home,DC=vu,DC=local

-   CN=bob,OU=Users,OU=VU,DC=home,DC=vu,DC=local

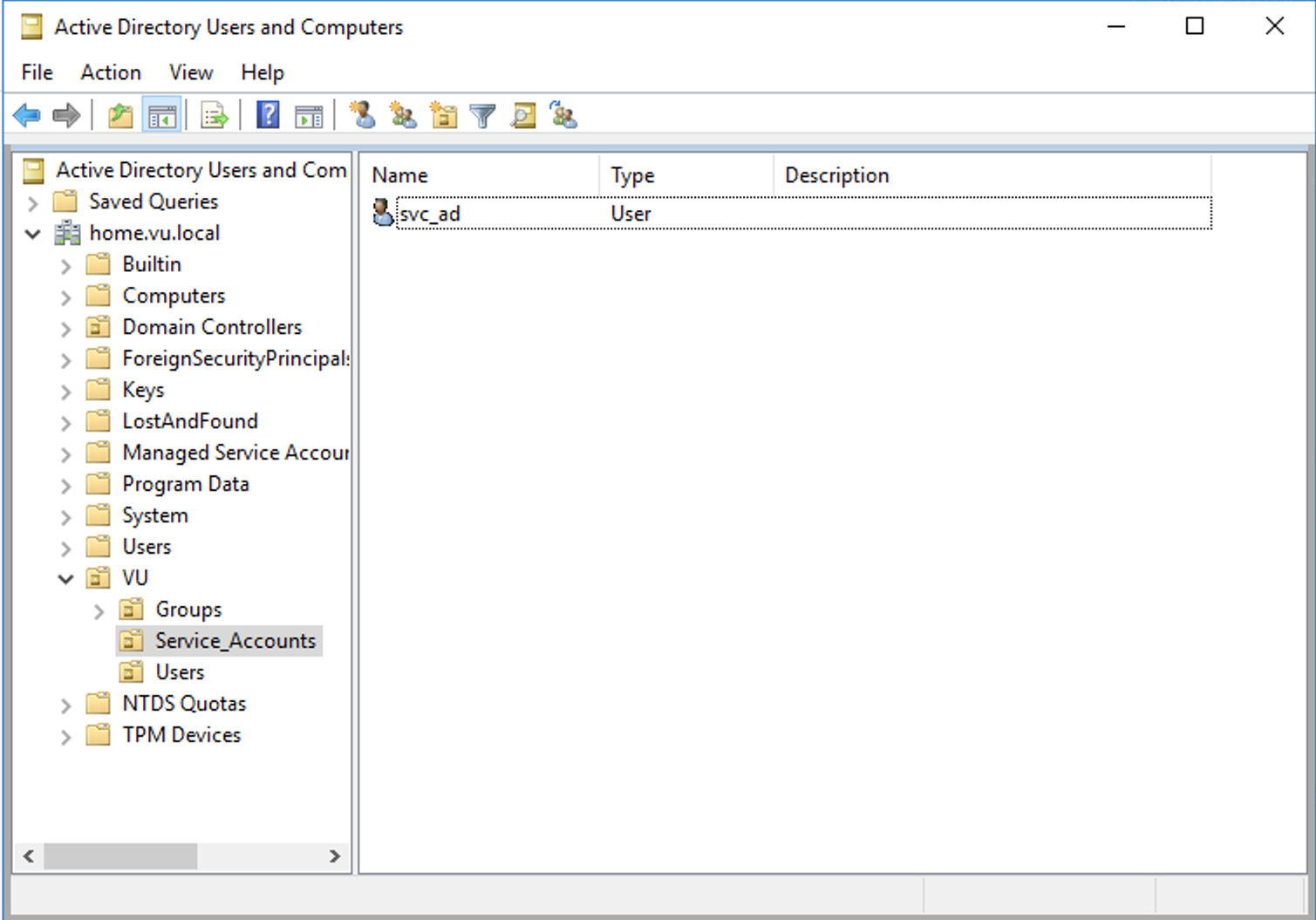

In the figure below, using an Active Directory structure as an example, you can see where the service account exists in the directory tree.

![service accounts](./img/image14.png)

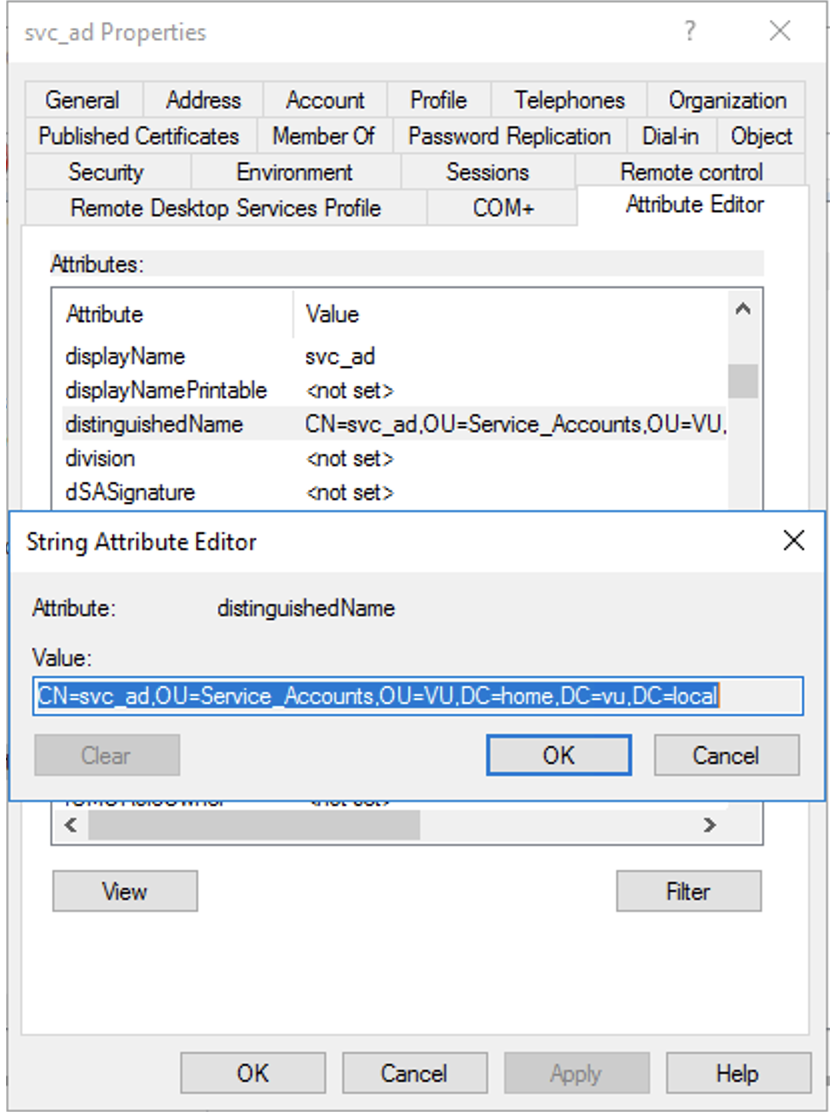

The figure below shows the service account’s `distinguishedName` value that is entered in the **Bind DN** field.

![Service Accounts](./img/image9.png)

Bind Password - This is the password of the above Bind DN service account/user account, used to authenticate to the LDAP server. This field is not required if the LDAP server provides access for anonymous authenticate.
Root CA - This field is not necessary and can be left blank if you are accessing an insecure LDAP connection or if the Insecure Skip TLS Verify checkbox is checked, when using a secure LDAP connection.
Insecure No SSL Checkbox - Check this box when connecting to LDAP with an insecure connection. For example, when connecting over port 389, an insecure LDAP port, check this box.
Insecure Skip TLS Verify - Check this box when connecting to LDAP over a secure connection, for example port 636, but do not have a Root Certificate Authority to validate the certificate from the LDAP server or you do not want to validate the certificate.
Start TLS - Check this box when connecting to LDAP over an insecure connection/port (for example connecting over a port that is NOT 636), but want to start a secure connection. A StartTLS command will be used to negotiate a secure connection. If not checked, secure connections will use the LDAPS protocol.

Configure your LDAP user search query using Kommander

At this point you can configure the LDAP user search query fields. These fields determine which users are searched for, in the LDAP directory, and compared against the user logging into Konvoy. This list of users determines the allowed users who can access Konvoy.

Fill in the fields below. The figure below is an example of a possible fully completed user search configuration.

Configuration

User Search Base DN - This is the part of the LDAP directory tree Konvoy uses, as the base, to start searching for users allowed to access Konvoy. The format of the Base DN is in the standard LDAP data interchange format for the base distinguished name.

In the figures below, using an Active Directory structure as an example, you can see where all the possible users will be queried from and where the User Search Base DN is derived.

To find the distinguished name of the Users folder, right click the folder, go to Properties, go to String Attribute Editor, and scroll to the distinguishedName field, and click View.

In this example, the User Search Base DN field value is:

**OU=Users,OU=VU,DC=home,DC=vu,DC=local**

User Search Username - This is the LDAP attribute used to compare the value of the login username, from Konvoy, to the LDAP directory user. This is the username that end users will use to log into Konvoy through this LDAP directory. This is typically a username or an e-mail address. Using Active Directory, as an example, a common LDAP attribute that is used, is sAMAccountName. Typically, that value is the username, like bsmith or tdoe.

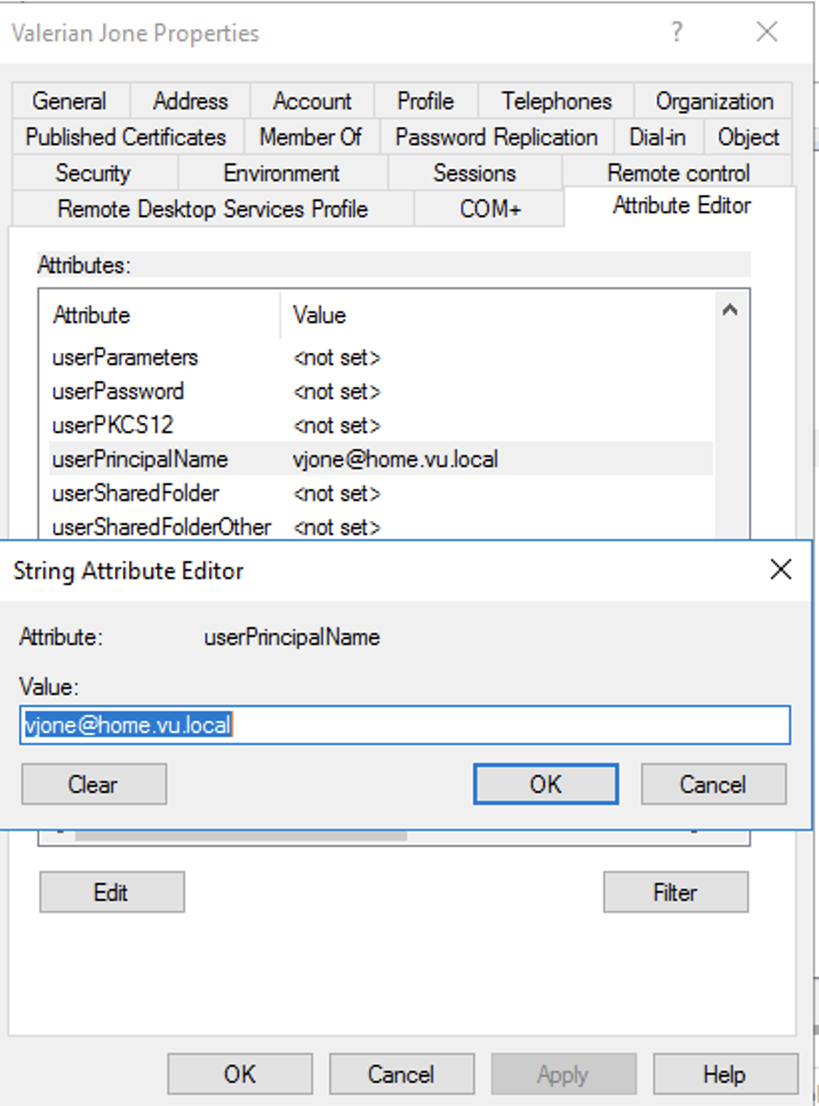

Another alternative is userPrincipalName which is the fully qualified login name with the domain attached like bsmith@home.vu.

The attribute selected determines the login name end users will use to log into Konvoy. If sAMAccountName is used, the user logs in with a username like bsmith.

If userPrincipalName is used, the user logs in with a username like bsmith@home.vu.

![Principal Name](./img/image10.png)

User Search Filter - This field is optional and filters out a large number of returned entries, typically by object type. An example filter is:

(objectClass=person)

NOTE: The parentheses are part of the filter in this example and are needed. Entering this information incorrectly results in LDAP search syntax errors. This example returns LDAP objects of type person, only. This means that only real people can log into Konvoy rather than a service account or non-human entity.
User Search Scope - This value specifies how far down the LDAP directory tree the LDAP search should go. If there are valid users across your LDAP directory starting from the User Search Base DN directory, select sub (search the whole sub tree). If all the valid users are at the User Search Base DN level, then select one (only search one level). Depending on the structure of your LDAP directory, this can speed up or slow down the search process and the login process in to Konvoy.

Typically, this value is set to sub (search the whole sub tree).
User Search ID Attribute - This specifies the attributes to match with a user entry, to the name claim. This defaults to uid if not specified. Generally this attribute is set to the same as User Search Username. For example, from the above User Search Username field, since that is set to sAMAccountName, the User Search ID Attribute can also be set to sAMAccountName.
User Search E-Mail - This field identifies the authenticated user like UID. This can be an e-mail address, a username, or a unique identifier.

NOTE: This attribute is important and has downstream effects when setting up Groups in Kommander, when granting access to individual users. Konvoy and Kommander use the value of this field to determine if the authenticated user belongs to one or more Groups in the system.

As an example, sAMAccountName is used for the value of this attribute. When adding identity provider users (vs identity provider groups) into a Group, you specify individual user values within the Group as in the figure below. Under Users, notice how vjone is specified. vjone, in this case, is a possible unique value of the attribute sAMAccountName that identifies that specific person.

Also, if userPrincipalName was specified for the value of this attribute in the LDAP Identity Provider configuration, then the e-mail, vjone@home.vu.local would be shown in the figure above.

NOTE: The configuration of the Users in the Group in the figure above has nothing to do with User Search Username, User Search ID Attribute, or User Search Name fields in the LDAP Identity Provider configuration. This means that the username used to log into Konvoy and Kommander, does not have to be the value that the RBAC Groups leverage to verify authorization within the system.
User Search Name, User Search E-Mail Suffix - These fields are optional and maps to the display name of users and email claim. If the User Search Name field and User Search E-Mail Suffix field both have values then the combination of these values is used instead of the User Search E-Mail value. The User Search E-Mail value is disregarded.

NOTE: The User Search E-Mail field will be disregarded if the User Search Name field and User Search E-Mail Suffix field have values. If User Search Name field has a value but the User Search E-Mail Suffix does not then the User Search Name field is disregarded and the User Search E-Mail field value is used instead.

The format of the e-mail composition is as follows:

<User Search Name>@\<User Search E-Mail Suffix>

This composition is then used in the Groups for Identity Provider Users

Configure your LDAP group search query using Kommander

Groups are how identity provider users and identity provider groups, from the identity provider (LDAP directory) are grouped together and mapped in Kommander, and access Konvoy and Kommander. Under Access Control > Cluster Policies, Roles are then applied to Groups to give permissions/access to the users in the Group.

groups

At this point you can configure the LDAP group search query fields. These fields determine which groups are searched for, in the LDAP directory, and compared against, when a user logs into Konvoy. The list of groups that are returned determines the potential groups that can access Konvoy. LDAP groups are typically the best way to manage authorization access with Kommander Groups.

Go to Administration > Groups.
Select + Create Group. Select Edit Group. Fill in the fields below. The figure below is an example of a possible fully completed group search configuration.
Fill in fields below. The figure below is an example of a possible fully completed group search configuration.

Group Search Base DN - This is the part of the LDAP directory tree that Konvoy uses, as the base, to start search for groups allowed to access Konvoy. The format of the Base DN is in the standard LDAP data interchange format for the base distinguished name.

In the figure below, using an Active Directory structure as an example, you can see where all the possible groups will be queried from and where the Group Search Base DN is derived.

To find the distinguished name of the Groups folder, right click the folder, go to properties, go to attribute editor, and scroll to the distinguishedName field, and click View.

In this example the User Search Base DN field value is:

OU=Groups,OU=VU,DC=home,DC=vu,DC=local
Group Search Filter - This field is optional. The field is used to filter out a large number of returned entries, typically by object type. An example filter is:

(objectClass=posixGroup)

NOTE: The parentheses are part of the filter in this example and are needed. Entering this information incorrectly results in LDAP search syntax errors. This example returns LDAP objects that are of type posixGroupi, only. This means that only real groups can log in to Konvoy rather than some other non-group entity.
Group Search Scope - This value specifies how far down the LDAP directory tree the LDAP search should go. If there are valid groups across your LDAP directory structure starting from the Group Search Base DN directory, select sub (search the whole sub tree). If all of the groups are at the Group Search Base DN level, then select one (only search one level). Depending on the structure of your LDAP directory, this can speed up or slow down the search process and the login process in to Konvoy.

Typically, this value is set to sub (search the whole sub tree).
Group Search User Attribute - This attribute adds an additional requirement to the LDAP search filter. This field, on the user, must be matched by the value of the Group Search Group Attribute field, on the user, for the user to be part of that group.

For example, if distinguishedName is filled in this field, the Group Search Group Attribute values must match the distinguishedName on the user, for the user to be part of that group.

Typically, the Group Search Group Attribute field lists all of the distinguishedName values of its members in a group attribute named member.

The exact filter being added is: (=)

When entering the optional values of Group Search User Attribute, Group Search Group Attribute, and Group Search Name Attribute, all fields must be filled in, or no fields must be filled in.
Group Search Group Attribute - This field specifies the attribute on the LDAP group that holds the list of users that belong to that group. The value entered here, is the attribute value on the group, not the user. Typically, in Active Directory for example, the field specified here is member. See the figure below as an example.

The combination of Group Search Group Attribute and Group Search User Attribute provide a filter to determine if a user belongs to a particular group.

When entering the optional values of Group Search User Attribute, Group Search Group Attribute, and Group Search Name Attribute, all fields must be filled in, or no fields must be filled in.

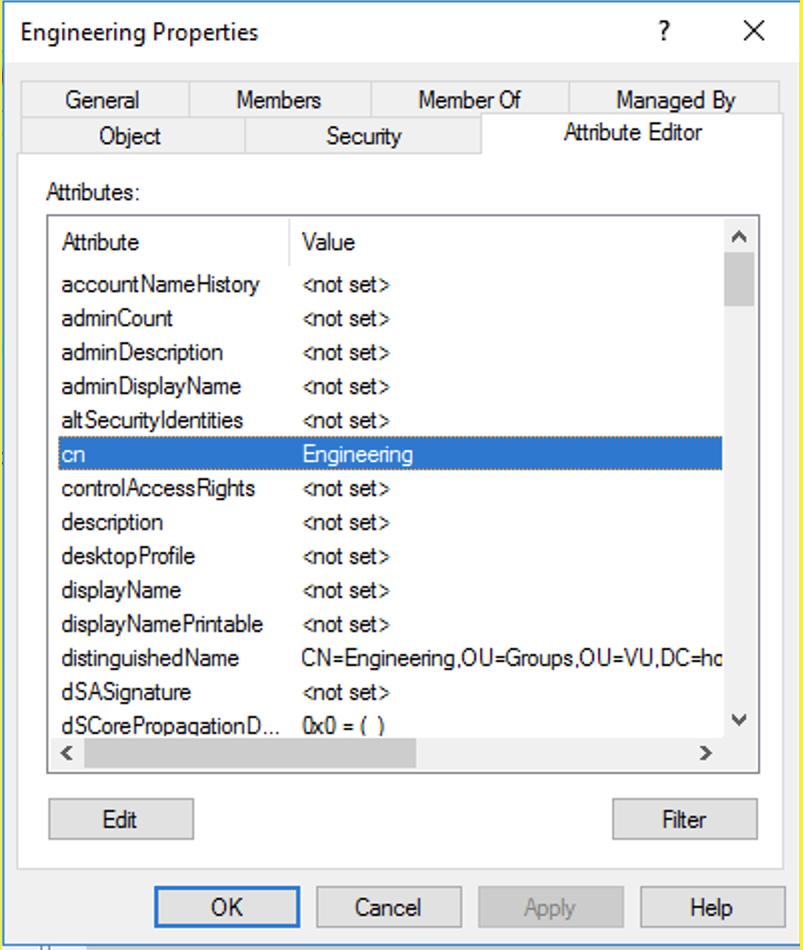

Group Search Name Attribute - This field specifies the LDAP attribute that holds the name of the LDAP group itself. Typically in Active Directory, for example, the attribute name is cn. See the figure below as an example.

![Group Search](./img/image5.png)

When entering the optional values of **Group Search User Attribute**, **Group Search Group Attribute**, and **Group Search Name Attribute**, all fields must be filled in, or no fields must be filled in.

Verifying External LDAP Identity Provider Functionality

After you connect your LDAP directory and configure your users and groups, you must determine if you can access your LDAP directory. Using Konvoy and Kommander you can add identity provider users and identity provider groups to the Kommander Groups. These Groups can have roles applied to their users and groups. In this procedure we apply the Cluster Admin Role to the group to test and check your LDAP access. The following procedure shows how to perform this in Kommander.

NOTE: In general, identity provider groups are typically the best way to manage access to Konvoy, Kommander, and Kubernetes.

Go to Administration > Identity Providers.
Select the Groups tab.
Select the + Create Group button. In the name field, enter a name for your group. This is an arbitrary name that should be easily understood and descriptive.
Select + Add User link. Enter the value of users you want to add to this group. These values are the same values that are returned by the User Search E-Mail LDAP attribute specified previously. In this example, these values would be the values returned by the sAMAccountName LDAP attribute on the LDAP User object. See the figure below.
Select the +Add Group link. Enter the value of the LDAP group name you want to add to this group. These values are the same values that are returned by the Group Search Name LDAP attribute specified previously. In this example, these values are the values returned by the cn LDAP attribute on the LDAP Group object.

NOTE: When using LDAP groups, the syntax must be modified to prefix the group name with oidc:. There is no space between oidc:i and the name of the LDAP group. For example, if the LDAP group name is Engineering (set by the cn LDAP attribute previously), you specify the name in the groups field as oidc:Engineering

Select the Save button.
Go to Access Control.
Select the Cluster Policies tab. Your previously created groups should be displayed.
Select the Add or remove roles link to the right of the selected group.
Select the Roles field and select Cluster Admin Role.
Select the Save button.
